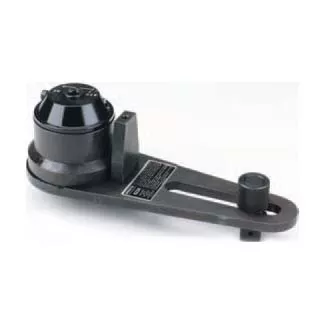

Torque Multiplier – 2,200 Foot Pounds 6234

Maximum rated input: 162 ft/lb (220 Nm, 22.4 m/kg).Maximum rated output: 2,200 ft/lb (2,983 Nm, 304m/kg).Effective Multiplication: 13.6:1 +- 5%.Reaction system: reaction plate with slave drive.Gear system: three stage planetary.Anti-backlash device: self-contained, 3 position.Can be used for Mack truck leaf springs.Product No.: 6234Input Drive: 1/2” Sq. FemaleOutput Drive: 1” Sq. MaleGear Ratio: 15.0:1Head width: 5-1/2”Head length: 4-7/8”Overall length: 14-1/16”Weight: 17.2 lbs
