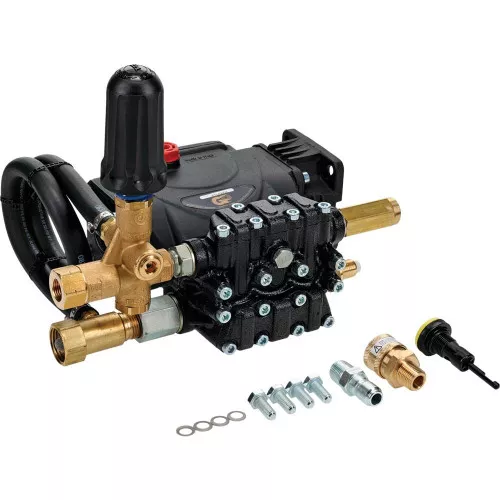

Pressure Washer Pump for General Pump TC1506GUI 0.591″ Bore Size; 030-010

Description

Pressure Washer Pump For General Pump TC1506GUI 0.591″ Bore Size; 030-010

Part Number: C030-010T

MPN: 030-010

Part Notes

Description Pressure Washer Pump Bore Size 0.591″ Gallons Per Minute 2.600 HP 7.210 PSI 2700 Type Horizontal Gas Flanged Notes Crankcase oil capacity 11.8 Oz. Flanged for direct couple to gasoline engines; 3/4″ hollow shaft Flooded pump dimensions 10.4″ x 8″ x 7.7″Gauge port 1/8″ maximum inlet required Inlet port thread 1/2″-14 BSP-F and Discharge port thread 3/8″-19 BSP-F Manufacturer warranty applies Maximum fluid temperature: 165 F Maximum inlet pressure: 125 PSI Premium built-in trapped pressure unloader on left side of manifold with an exclusive lifetime warranty TC Series 60Triplex plunger pump SAE J609A
