Technical Specifications
General

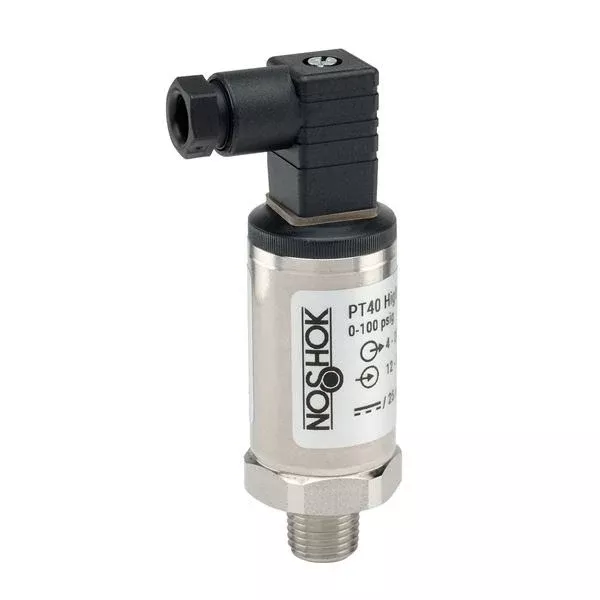

| Product Series | PT40 High Accuracy Fixed Range Pressure Transmitter |
|---|---|
| Accuracy | ±0.125% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 0 Vdc to 5 Vdc, 3-wire |
| Power Requirement | 10 Vdc to 30 Vdc |
| Brand | NOSHOK |
| Manufacturer Part | PT40-150PSIG-2-2-45-16 |
| Size | 7/16″ |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 316 Stainless Steel housing |
|---|
Performance
| Pressure Range | 0 to 150 psi gauge |
|---|---|
| Environmental Rating | IP68 |
| Media Temperature Range | -20 to 212 ºF / -30 to 100 ºC |
Connections
| Process Connection | 7/16-20 male SAE J514 FIG 34B (non-adjustable) |
|---|---|
| Electrical Connection | 1/2 NPT conduit with 3 ft cable |
