Home » Shop » hot sale » NOSHOK PT40 Series High Accuracy Fixed Range Pressure Transmitter PT40-10000PSIG-1-2-8-17, 0 to 10000psig, ±0.25% of span, 0 Vdc to 5 Vdc, 3-wire, 1/2 NPT male, DIN form C with 3 ft cable

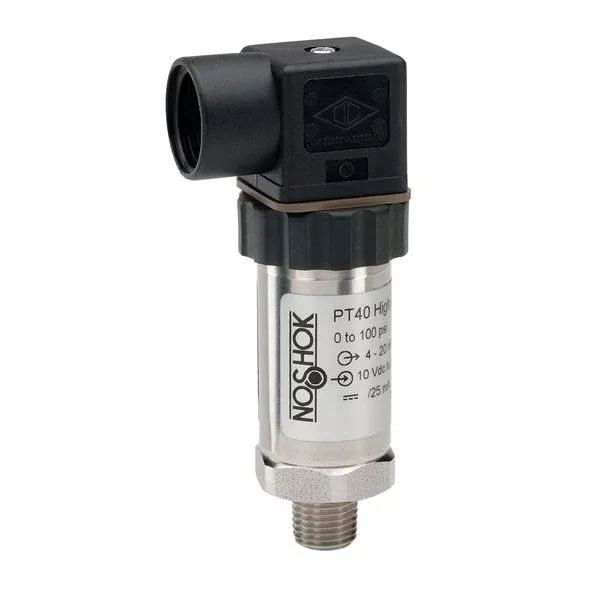

NOSHOK PT40 Series High Accuracy Fixed Range Pressure Transmitter PT40-10000PSIG-1-2-8-17, 0 to 10000psig, ±0.25% of span, 0 Vdc to 5 Vdc, 3-wire, 1/2 NPT male, DIN form C with 3 ft cable

Original price was: $373.59.Current price is: $275.83.

Sale!
SKU: PT40-10000PSIG-1-2-8-17 Category:
Share

Technical Specifications

General

Product Series PT40 High Accuracy Fixed Range Pressure Transmitter
Accuracy ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions
Output Signal 0 Vdc to 5 Vdc, 3-wire
Power Requirement 10 Vdc to 30 Vdc
Brand NOSHOK
Manufacturer Part PT40-10000PSIG-1-2-8-17
Size 1/2″
Country of Origin Made in the United States

Materials & Construction

Materials of Construction (Wetted Parts) 316 Stainless Steel with 316 Stainless Steel housing

Performance

Pressure Range 0 to 10000 psi gauge
Environmental Rating IP65
Media Temperature Range -20 to 212 ºF / -30 to 100 ºC

Connections

Process Connection 1/2 NPT male
Electrical Connection DIN form C with 3 ft cable

Download Specification Sheet (PDF)
