Technical Specifications
General

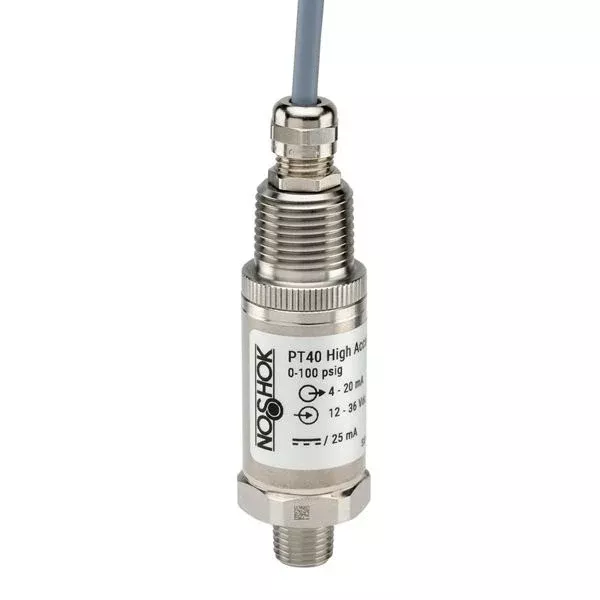

| Product Series | PT40 High Accuracy Fixed Range Pressure Transmitter |
|---|---|
| Accuracy | ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Power Requirement | 10 Vdc to 30 Vdc |
| Brand | NOSHOK |
| Manufacturer Part | NSK-PT40-PT-0-to-5000-psig-DIN-form-C-3-ft |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 316 Stainless Steel housing |
|---|
Performance
| Pressure Range | 0 to 5000 psi gauge |
|---|---|
| Environmental Rating | IP65 |
| Media Temperature Range | -20 to 212 ºF / -30 to 100 ºC |
Connections
| Process Connection | 1/4 NPT male |
|---|---|
| Electrical Connection | DIN form C with 3 ft cable |
