Technical Specifications
General

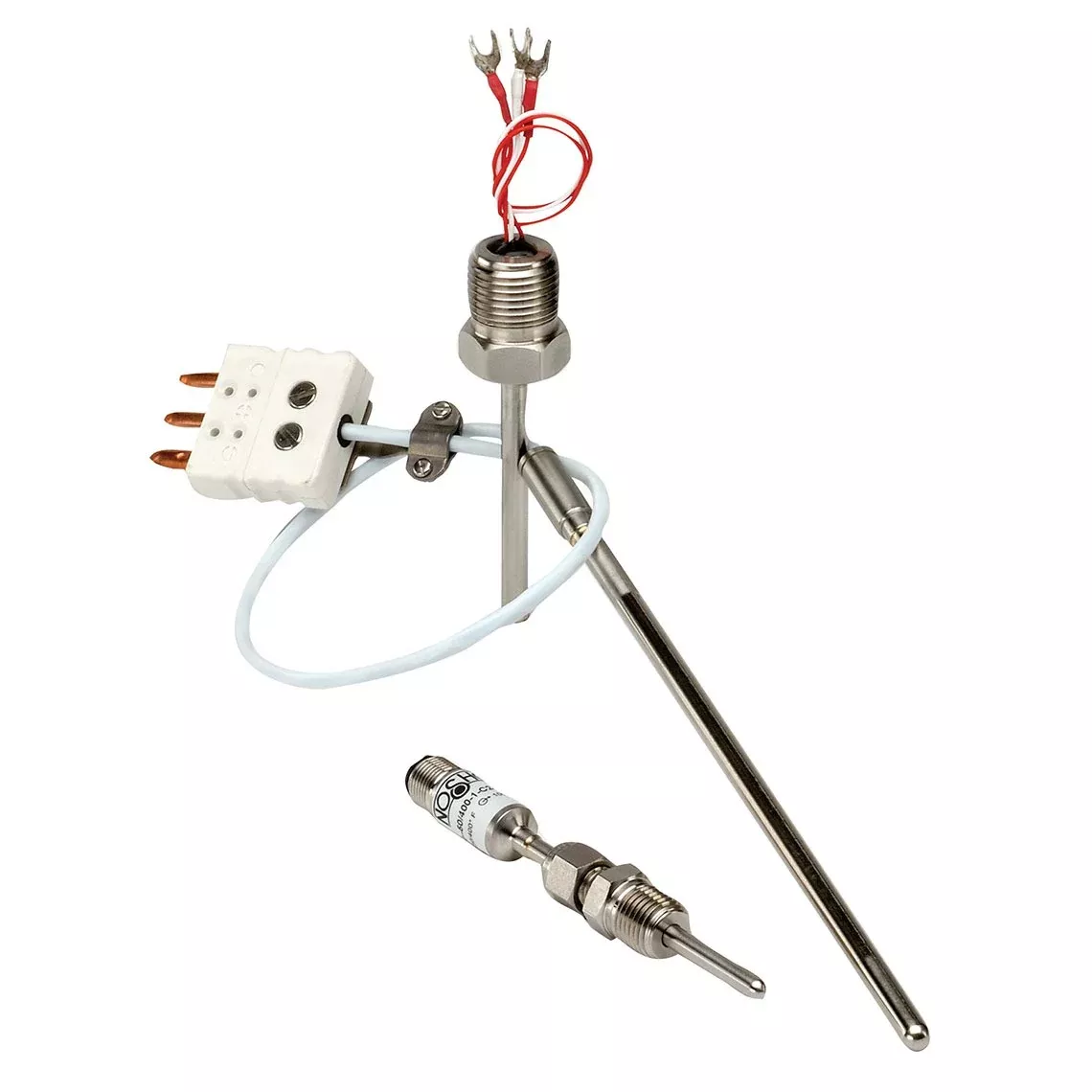

| Type |
Probe |
| Series |
900 |
| Accuracy |
±0.12% (±0.3 ºC) at 0 ºC, Class B |
| Circuit Types |
Single, 2-Wire |
| Lead Wires |
Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation |
| Self-Heating |
50 mW / ºC Typical in Moving Water |
| Insulation Resistance |
Single Element Probes: 100 mega Ω/min. at 500 Vdc, Leads to Case |
| Transition |
Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC) |
| Warranty |
3 yr |
| Stock |
Yes |
| Brand |
NOSHOK |
| Manufacturer Part |
NOSHOK 900 Series |
| Size |
1/2″ |
| Country of Origin |
Made in the United States |
Materials & Construction
Performance
| Temperature Ranges [Min] |
-330 ºF |
| Temperature Ranges [Max] |
1,100 ºF |
| Pressure Ratings for Tube |
500 psi |
| Resistance Temperature Device (RTD) Element |
PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751) |
Connections
| Connection Type |
Male National Pipe Thread (MNPT) with sliding compression fitting – Add 2″ to stem length for this option. If installing with thermowells, Process Connection option 48 or 61 must be selected |
| Connection Size |
1/2 in |
| Electrical Connection |
M12 x 1 (5-Pin) – Single Circuit Types Only |
Standards & Certifications
32 micro-inches maximumDownload Specification Sheet (PDF)
