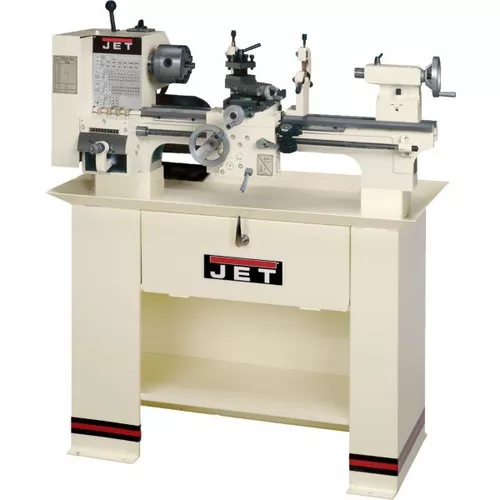

JET BD-920W, Lathe with S-920N Stand (Discontinued)

Original price was: $2,213.89.Current price is: $1,465.08.

Sale!
SKU: BD-920W Category:
Share

Model Number 321155K
Brand Jet
Height 45 inch
Width 20 inch
Length 37.5 inch
Net Weight 285 pound
Gross Weight 325 pound
Swing over Bed (in.) 8-3/4
Swing over Cross Slide (in.) 5-1/4
Swing Through Gap (in.) 20
Length of Gap (in.) N/A
Distance Between Centers (in.) 20
Spindle Bore (in.) 25/32
Spindle Mount 1-1/2 x 8
Spindle Taper W/ Sleeve MT-3
Number of Spindle speeds 6
Range of Spindle Speeds (RPM) 130 – 2,000
Number of Longitudinal and Cross Feed Rates 27
Range of Longitudinal Feeds (IPR) .005 – .011
Range of Cross Feeds (IPR) N/A
Number of Inch Threads 27
Range of Inch Threads (TPI) 8 – 56
Number of Metric Threads 11
Range of Metric Threads .5 – .3
Max Tool Size (in.) 1/2 x 1/2
Compound Slide Travel (in.) 1-7/8
Cross Slide Travel (in.) 5
Carriage Travel (in.) 16
Tailstock Spindle Travel (in.) 1-9/16
Taper in Tailstock Spindle MT-2
Steady Rest Capacity (in.) 1-7/8
Follow Rest Capacity (in.) 1-7/8
Width of Bed (in.) 4-7/8
Motor 3/4HP, 1Ph, 115V only
Prewired 115V only
Feature 31 N/A
Feature 32 N/A
