Description

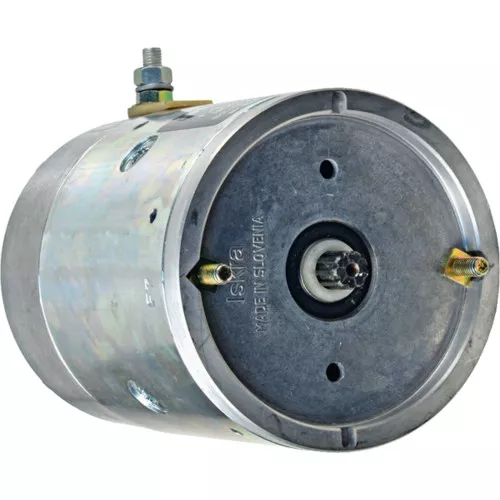

Hydraulic Motor For Snow-way Various Models Tractors; MAH-MM78
Part Number: CMAH-MM78T
MPN: MAH-MM78
Part Notes
Volt: 12
Power: 1.600 kw
HP: 2.146
AMPS: 230
RPM: 3000
Rotation Direction: Clockwise
OD: 114.300 mm/4.500″
Shaft OD: 0.476″/12.100mm
Length: 175.300 mm/6.902″
Terminal 2 Size: 5/16-24
Shaft: 9 Straight Splines
Current Type: DC
Notes: (2) 1/4-20 Mounting Bolts
