Home » Shop » Enclosures » Hoffman E4DR19FM45U 4-Post Open Frame Rack, Black, Aluminum

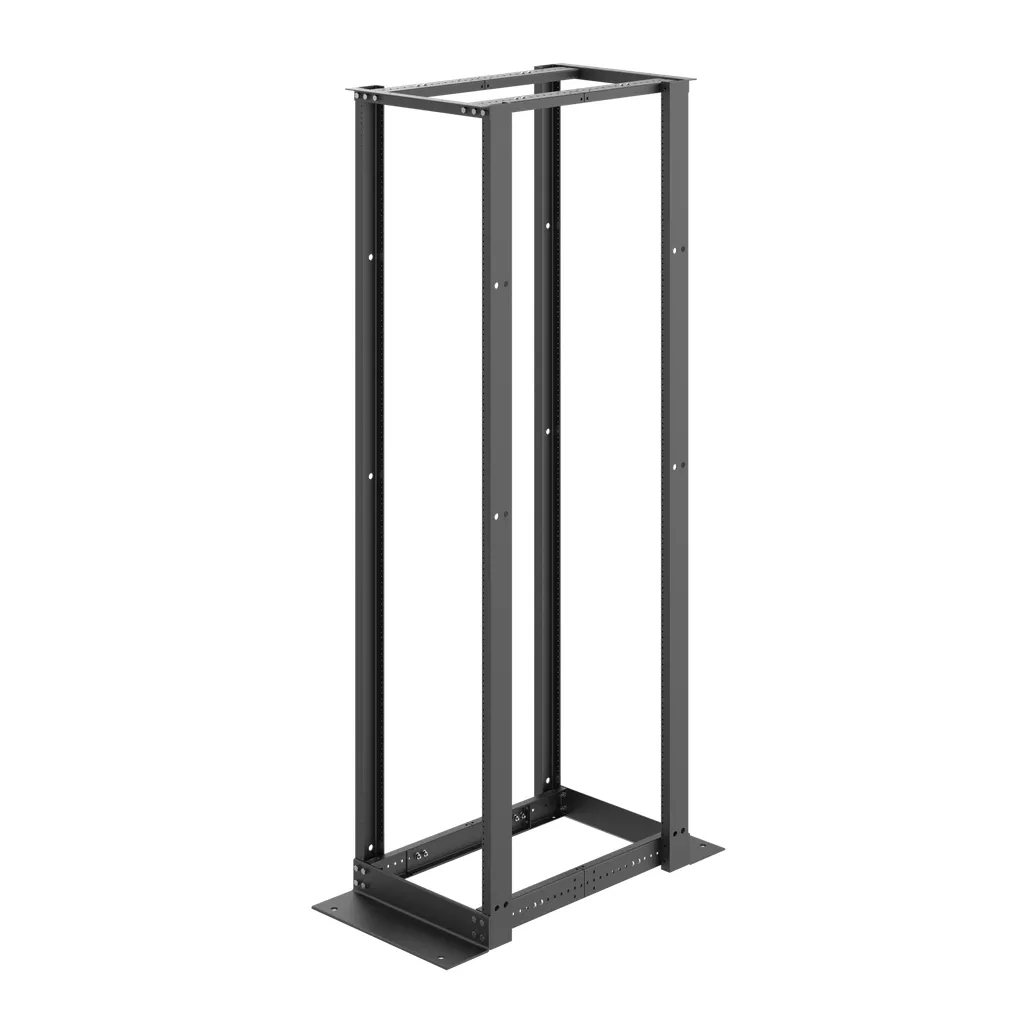

Hoffman E4DR19FM45U 4-Post Open Frame Rack, Black, Aluminum

Original price was: $1,480.46.Current price is: $1,095.11.

Sale!
SKU: 2091085 Category:
Share
  • Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
  • EIA universal 5/8 – 5/8 – 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
  • Compatible with 19-in. rack accessories
  • Available with nominal frame height of 6, 7 and 8 feet
  • RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
  • Floor mounting holes predrilled at .750-inch diameter
  • 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
  • For square hole model, order screws and cage nuts separately
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Includes complete assembly instructions
  • Shipped unassembled for convenient transport to job site
  • Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
  • Uprights on the square-hole model are made from 12 gauge steel
  • Top and bottom angles made of extruded aluminum (6063-T6 alloy)
