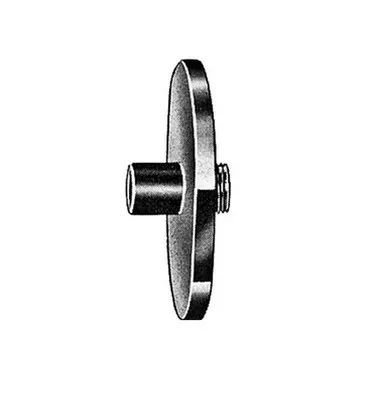

Dotco 14-2632 Router Guide For Router Bits with 3/8″ Shank Bits

Built for precision routing applications with compatible Dotco pneumatic routers, the Dotco 14-2632 Router Guide is designed for use with 3/8″ shank router bits. This guide helps maintain accurate bit alignment during trimming, profiling, and template-guided routing, making it well suited for composite fabrication, aerospace manufacturing, woodworking, and other industrial routing operations where consistent results are important.

The 14-2632 router guide features Dimensions A: 2″, B: 9/16″, C: 3/4″, and D: 3/16″. These dimensions provide a reliable reference when selecting a replacement guide or configuring a compatible Dotco router for a specific routing application.

Type: Router Guide | Model: 14-2632 | Compatible Bit Shank: 3/8″ | Dimension A: 2″ | Dimension B: 9/16″ | Dimension C: 3/4″ | Dimension D: 3/16″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and laminate edge finishing.
• Aerospace routing and precision fabrication.
• Template-guided routing in industrial manufacturing environments.
• Woodworking and fabrication projects requiring accurate router guidance.

FAQs:

• Q: Is the Dotco 14-2632 a complete router?A: No. It is a router guide accessory intended for use with compatible Dotco pneumatic routers.
• Q: Which router bit shank size is this guide designed for?A: The 14-2632 is designed for router bits with a 3/8″ shank.
• Q: Why should I verify the guide dimensions before ordering?A: Matching the A, B, C, and D dimensions to your existing guide or routing setup helps ensure proper fit and dependable routing performance.
