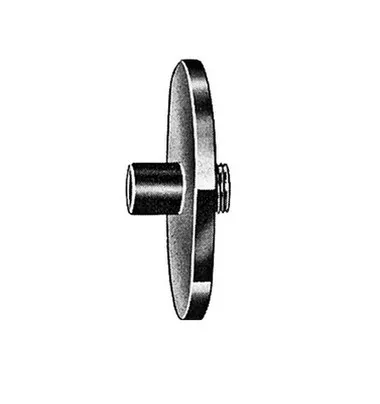

Dotco 14-2542 Router Guide For Router Bits with 3/8″ Shank Bits

Built for guided routing setups using compatible Dotco pneumatic routers, the Dotco 14-2542 Router Guide is made for 3/8″ shank router bits. This accessory helps support controlled bit positioning during trimming, profiling, and template-guided routing work where guide dimensions must match the router setup.

The 14-2542 router guide features Dimensions A: 1-1/2″, B: 9/16″, C: 5/8″, and D: 1/8″, providing buyers with key dimensional reference points for replacing an existing guide or configuring a compatible Dotco router assembly.

Type: Router Guide | Model: 14-2542 | Compatible Bit Shank: 3/8″ | Dimension A: 1-1/2″ | Dimension B: 9/16″ | Dimension C: 5/8″ | Dimension D: 1/8″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite material trimming with compatible Dotco routers.
• Aerospace routing and laminate edge finishing.
• Template-guided routing in industrial fabrication shops.
• Replacement guide use for router setups requiring the listed A, B, C, and D dimensions.

FAQs:

• Q: Is the Dotco 14-2542 a router guide or a router bit?A: It is a router guide accessory. Router bits and the router tool are sold separately.
• Q: What router bit shank size does this guide fit?A: This guide is for router bits with 3/8″ shanks.
• Q: What dimensions should be checked before ordering?A: Verify Dimension A: 1-1/2″, Dimension B: 9/16″, Dimension C: 5/8″, and Dimension D: 1/8″ against your existing guide or required setup.
