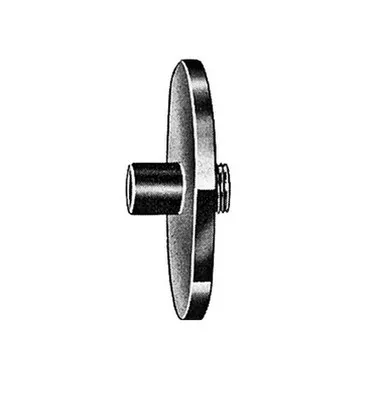

Dotco 14-2240 Router Guide For Router Bits with 3/8″ Shank Bits

Built for precision routing with compatible Dotco pneumatic routers, the Dotco 14-2240 Router Guide is designed for use with 3/8″ shank router bits. This guide helps maintain consistent bit positioning during trimming, edge profiling, and template-guided routing, providing improved control for composite fabrication, aerospace manufacturing, woodworking, and industrial production environments where repeatable routing accuracy is essential.

The 14-2240 router guide features Dimensions A: 2″, B: 1/2″, C: 3/4″, and D: 1/8″. These dimensional specifications provide a reliable reference for replacing an existing guide or selecting the proper guide for a compatible Dotco routing setup.

Type: Router Guide | Model: 14-2240 | Compatible Bit Shank: 3/8″ | Dimension A: 2″ | Dimension B: 1/2″ | Dimension C: 3/4″ | Dimension D: 1/8″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and laminate edge finishing.
• Aerospace routing and precision fabrication.
• Template-guided routing in industrial manufacturing.
• Woodworking and shop routing applications requiring consistent guide control.

FAQs:

• Q: Is the Dotco 14-2240 a complete router?A: No. This product is a router guide accessory only and is intended for use with compatible Dotco pneumatic routers.
• Q: What size router bits is this guide designed for?A: The 14-2240 is designed for router bits with a 3/8″ shank.
• Q: Why should I verify the guide dimensions before ordering?A: Confirming the A, B, C, and D dimensions against your existing guide or application helps ensure proper fit and reliable routing performance.
