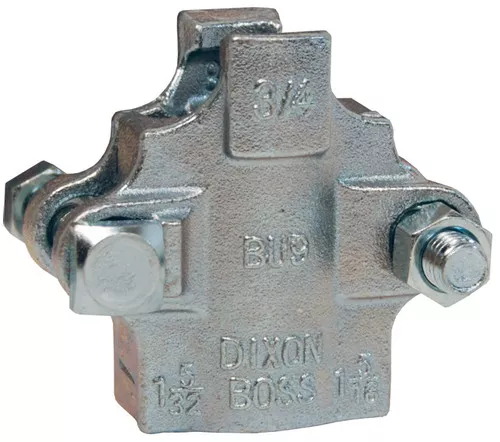

Dixon Boss CD clamp is for use with Boss System stems and couplings. The 2 bolt and 2 gripping finger clamps are designed for use on smaller diameter hoses. The Clamps are sized by the Hose ID and the Hose OD which has a range to allow for various outside hose dimensions.
Note: Boss Clamps are not recommended to to be reused as the bolts are designed for a single bend only.
Specs:
- Recommended for steam service up to 450°F (232°C)
- Constructed from cast carbon steel
- Bolts can be retorqued
- Torque values are for dry bolts
- Recommended Torque: 6 ft. lbs.
- Hose ID: 3/8 in.
- Hose OD: 44/64 in. to 56/64 in.
