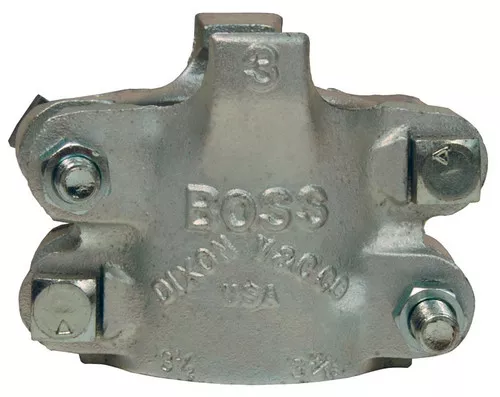

Dixon Boss B14 clamp is for use with Boss System stems and couplings. The 4 bolt and 2 gripping finger clamps are designed for use on larger diameter hoses. The Clamps are sized by the Hose ID and the Hose OD which has a range to allow for various outside hose dimensions.
Note: Boss Clamps are not recommended to to be reused as the bolts are designed for a single bend only.
Specs:
- Recommended for steam service up to 450°F (232°C)
- Constructed from zinc plated iron
- Bolts can be retorqued
- Torque values are for dry bolts
- Recommended Torque: 21 ft. lbs.
- Hose ID: 1 in.
- Hose OD: -44/64 in. to 1-60/64 in.
