| Capacity | 8,000 LB. |
| Lifting Time | Ask Your Salesperson |
| Overall Height | 108″ (9′) |
| Overall Width | 132″ (11′) |
| Outside Column to Outside Column | 124″ (10′ 4″) |
| Maximum Lift Height (Without Adapters) | 70 1/2″ (5′ 10 1/2″) |
| Maximum Lift Height (With Adapters) | 81 1/8″ (6′ 9 1/8″) |
| Minimum Arm Height | 3 1/2″ |
| Base Plate Width | 11 1/2″ |
| Inside Column | 109 5/8″ (9′ 1 5/8″) |
| Drive Thru | 99″ (8′ 3″) |
| Column Size | 7 1/4″ x 11″ |
| Column Thickness of Steel | 6mm |
| Carriage Thickness of Steel | 6mm |
| Arms Thickness of Steel | 6mm |
| Cable Diameter | .375″ |
| Base Of Lift | (17 1/2″ x 17 3/4″) |
| Motor/Electrical Requirement | 3 HP 220V +/- 5% (209-231volts) single (1) phase.A 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Shipping Weight | 1,290 LB. |

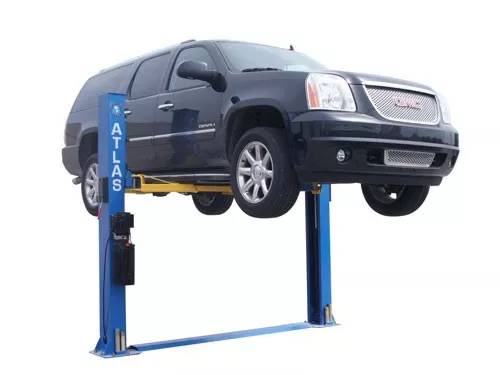

Baseplate 8,000 lbs. Capacity 2 Post Lift
Original price was: $2,999.39.$2,029.84Current price is: $2,029.84.
