Description

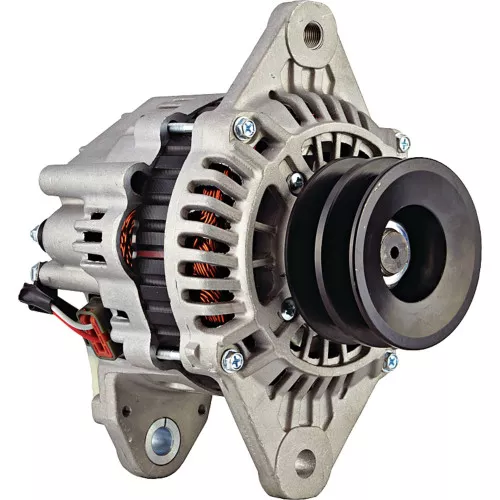

Alternator for Caterpillar 311CU, 320C, 320CL Tractors; 400-48254
Part Number: C400-48254T
MPN: 400-48254
Part Notes
Volt: 24
Amps: 35
Regulator Clock: 4:30
Rotation Direction: Clockwise
Mount Hole ID 1: M12x1.25
Mount Hole 1 Type: Threaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 11.200mm
Mount Hole 3 Type: Unthreaded
Mounting Ear Thickness: 0.551″/14mm
Mounting Ear 2 Thickness: 0.512″/13mm
Mounting Ear 3 Thickness: 0.709″/18mm
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M5x0.8
Terminal ID 3: R
Terminal 3 Size: Spade
Terminal ID 4: L
Terminal 4 Size: Spade
Terminal ID 5: P
Terminal 5 Size: Spade
Polarity: Negative
Number Of Grooves: 2
Pulley Type: Solid
Pulley Outer Diameter: 3.228″/82mm
Notes: Two-Wire Adaptor Harness on Regulator
